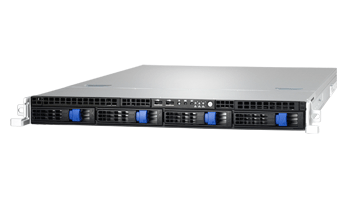

TYAN GT24B5501
TYAN GT24B5501-B5501G24V4H
| System | Form Factor | 1U Rackmount | |
| Chassis Model | GT24 | ||
| Dimension (D x W x H) | 25.4" x 17.2" x 1.72" (645 x 436 x 43.6mm) | ||
| Motherboard | S5501GM3NR | ||
| Board Dimension | EATX, 12"x13" (305x330mm) | ||
| Gross Weight | 16 kg | ||
| Front Panel | Buttons | (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) ID / (1) Warning / (3) LAN / (1) Reserved | ||
| I/O Ports | (2) USB ports | ||
| External Drive Bay | Type / Q'ty | 3.5" Hot-Swap / (4) | |
| Supported HDD Interface | SATA-II 3.0Gb/s | ||
| System Cooling Configuration | FAN | (4) 4cm fans | |
| Power Supply | Type | EPS1U | |
| Efficiency | PFC | ||
| Input Range | Full-range AC(100-240V) | ||
| Frequency | 47 - 63 Hertz | ||
| Output Watts | 400 Watts | ||
| Processor | Supported CPU Series | Intel Xeon Processors 3400 Series | |
| Socket Type / Q'ty | LGA 1156/ (1) | ||
| Thermal Design Power (TDP) wattage | Max up to 95W | ||
| Chipset | PCH | Intel 3420 | |
| Super I/O | Winbond W83627 | ||
| Memory | Supported DIMM Qty | (6) DIMM slots | |
| DIMM Type / Speed | DDR3 800/1066/1333* RDIMM/UDIMM / * limit 1 per channel for 1333MHz speed | ||
| Capacity | Up to 32GB RDIMM/ 16GB UDIMM | ||
| Memory channel | 2 Channels / Support 2 UDIMMs or 3 RDIMMs per channel | ||
| Memory voltage | 1.5V | ||
| Expansion Slots | PCI-E | (2) PCI-E Gen.2 x8 slots | |
| Pre-install TYAN Riser Card | M2091, PCI-E x16 1U riser card (left) / M2091-R, PCI-E x16 1U riser card (right) | ||
| Max. HBA Dimension (H x L) | (2) 111.15mm x 167.65mm (FH/HL) | ||
| Note: | x8 signal when using M2091 & M2091-R | ||
| LAN | Port Q'ty | (3) | |
| Controller | Intel 82574L | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200@75Hz | ||
| Chipset | Aspeed AST2050 | ||
| I/O Ports | USB | (4) ports (2 at front, 2 at rear) | |
| COM | (1) DB-9 COM port | ||
| PS/2 | (1) PS/2 connector (for Keyboard and Mouse) | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (3) ports | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| LED | Fan fail LED indicator / Over temperature warning indicator | ||
| Others | Chassis intrusion detection / Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2050 | |
| AST2050 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / BIOS update | ||
| AST2050 iKVM Feature | 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces | ||
| BIOS | Brand / ROM size | AMI / 4MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types | ||
| Operating System | OS supported list | Coming soon | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Yes | ||
| C-Tick | Yes | ||
| VCCI | Yes | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
| Package Contains | Barebone | (1) GT24B5501 Barebone | |
| Manual | (1) Quick Ref. Guide / (1) MB User's manual + (1) BB User's manual | ||
| Installation CD | (1) TYAN installation CD | ||
| Heatsink / Cooler | (1) LGA1156 CPU heatsink | ||
| Rail kit | (1) CRAL-0031, sliding rail kit for KGT24/ KGT62 | ||
| Mounting Ear | (1) CEAR-0050, mounting ear kit for GT20/ GT24 | ||
| Others | (1) HDD screw pack | ||
| Cable | Power Cord | (1) CCBL-0310, US type power cord / (1) CCBL-0300, EU type power cord | |
