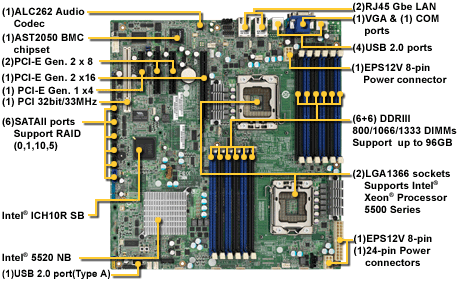

TYAN S7010
TYAN S7010-S7010AGM2NRF
| Processor | Supported CPU Series | Intel Xeon Processor 5500/ 5600 Series | |
| Socket Type / Q'ty | LGA1366 / (2) | ||
| Thermal Design Power (TDP) wattage | Max up to 130W | ||
| System Bus | Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect (QPI) support | ||
| Chipset | IOH / ICH | Intel 5520 / ICH10R | |
| Super I/O | Winbond W83627DHG | ||
| Memory | Supported DIMM Qty | (6)+(6) DIMM slots | |
| DIMM Type / Speed | DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM | ||
| Capacity | Up to 96GB at launch w/ dual rank RDIMMs | ||
| Memory channel | 3 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (1) PCI-E x8 slot (w/ x4 link) / (1) PCI-E Gen.2 x16 slot / (2) PCI-E Gen.2 x8 slots | |
| LAN | Port Q'ty | (2) | |
| Controller | Intel 82574L | ||
| Storage | SATA | Connector | (6) SATA |
| Controller | ICH10R | ||
| Speed | 3.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel Matrix RAID) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200@60Hz | ||
| Chipset | Aspeed AST2050 | ||
| Audio | Chipset | Realtek ALC888 | |
| Feature | HDA 2.0 spec. complaint | ||
| Notice: | 3-port audio bracket cable is optional | ||
| Input /Output | USB | (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A onboard) | |
| COM | (2) ports (1 at rear, 1 via cable) | ||
| VGA | (1) D-Sub 15-pin VGA port | ||
| Audio | LINE_IN, LINE_OUT, MIC_IN connectors / (1) 2x5-pin front panel audio header | ||
| RJ-45 | (2) GbE ports | ||
| Power | SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V | ||
| Front Panel | (1) 2x12-pin SSI front panel header | ||
| SATA | (6) SATA-II connectors | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Fan | Total (5) 4-pin headers / Total (5) 8-pin headers | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| Others | Chassis intrusion detection / Watchdog timer support | ||
| BIOS | Brand / ROM size | AMI / 2MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types | ||
| Physical Dimension | Form Factor | SSI EEB | |
| Board Dimension | 12"x13" (305x330mm) | ||
| Operating System | OS supported list | Please refer to our OS supported list. | |
| Regulation | FCC (DoC) | Class B | |
| CE (DoC) | Yes | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
| Package Contains | Motherboard | (1) S7010 Motherboard | |
| Manual | (1) User's manual / (1) Quick Ref. Guide | ||
| Installation CD | (1) TYAN installation CD | ||
| I/O Shield | (1) I/O Shield | ||
| Cable | SATA | (6) SATA signal cables | |
| Optional accessories | Cable | (1) CCBL-0615, COM port bracket cable / (1) CCBL-0311, SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB bracket cable | |
