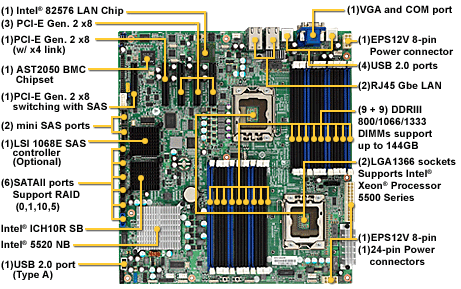

| Processor |
Supported CPU Series |
Intel Xeon Processor 5500/ 5600 Series |
| Socket Type / Q'ty |
LGA1366 / (2) |
| Thermal Design Power (TDP) wattage |
Max up to 130W |
| System Bus |
Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect (QPI) support |
| Chipset |
IOH / ICH |
Intel 5520 / ICH10R |
| Super I/O |
Winbond W83627DHG |
| Memory |
Supported DIMM Qty |
(18) DIMM slots |
| DIMM Type / Speed |
DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM |
| Capacity |
Up to 144GB at launch w/ dual rank RDIMMs |
| Memory channel |
3 Channels per CPU |
| Memory voltage |
1.5V or 1.35V |
| Expansion Slots |
PCI-E |
(1) PCI-E x8 slot (w/ x4 link) / (4) PCI-E Gen.2 x8 slots |
| Recommended TYAN Riser Card |
M2091, PCI-E x16 1U riser card (left) |
| LAN |
Port Q'ty |
(4) |
| Controller |
Intel 82574L / Intel 82576EB |
| Storage |
SATA |
Connector |
(6) SATA |
| Controller |
ICH10R |
| Speed |
3.0 Gb/s |
| RAID |
RAID 0/1/10/5 (Intel Matrix RAID) |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
1600x1200@60Hz |
| Chipset |
Aspeed AST2050 |
| Input /Output |
USB |
(7) USB2.0 ports (4 at rear, 2 via cable, 1 type A onboard) |
| COM |
(1) port (rear) |
| VGA |
(1) D-Sub 15-pin VGA port |
| RJ-45 |
(4) GbE ports |
| Power |
SSI 24-pin + 8-pin + 8-pin power connectors / EPS12V |
| Front Panel |
(1) 2x12-pin SSI front panel header |
| SATA |
(6) SATA-II connectors |
| System Monitoring |
Chipset |
Winbond W83793G |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| Fan |
Total (5) 4-pin headers / Total (5) 8-pin headers |
| Temperature |
Monitors temperature for CPU & system environment |
| Others |
Chassis intrusion detection / Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2050 |
| AST2050 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2050 iKVM Feature |
24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces |
| BIOS |
Brand / ROM size |
AMI / 4MB |
| Feature |
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types |
| Physical Dimension |
Form Factor |
SSI EEB |
| Board Dimension |
12"x13" (305x330mm) |
| Operating System |
OS supported list |
Please refer to our OS supported list. |
| Regulation |
FCC (DoC) |
Class B |
| CE (DoC) |
Yes |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity |
90%, non-condensing at 35° C |
| RoHS |
RoHS 6/6 Complaint |
Yes |
| Package Contains |
Motherboard |
(1) S7012 Motherboard |
| Manual |
(1) User's manual / (1) Quick Ref. Guide / (1) I/O Shield Quick Ref. Guide |
| Installation CD |
(1) TYAN installation CD |
| I/O Shield |
(1) I/O Shield |
| Cable |
SATA |
(6) SATA signal cables |
| USB |
(1) CCBL-035J, 2-port USB bracket cable |
| Optional accessories |
Riser Card |
M2091, PCI-E x16 1U riser card (left) |
| Cable |
(1) CCBL-0615, COM port bracket cable / (1) CCBL-0311, SATA 1-to-2 power cable / (1) CCBL-035J, 2-port USB bracket cable |
