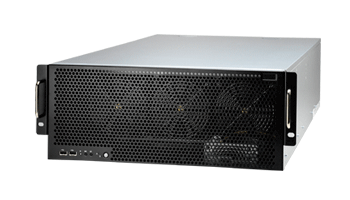

TYAN FT72-B7015
TYAN FT72B7015 B7015F72V2 - BTO
| system | Form Factor | 4U Rackmount | |
| Chassis Model | FT72 | ||
| Dimension (D x W x H) | 27.96" x 17.245" x 6.93" (710 x 438 x 176mm) | ||
| Motherboard | S7015 | ||
| Board Dimension | 16"x19" (406.4x482.6mm) | ||
| Gross Weight | 29 kg | ||
| Front Panel | Buttons | (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) PWR / (1) HDD / (1) Warning | ||
| I/O Ports | (2) USB ports | ||
| Internal Drive Bay | Type / Q'ty | (2) 2.5" fixed | |
| Supported HDD Interface | SATA-II 3.0Gb/s | ||
| System Cooling Configuration | FAN | (3) 12cm fans | |
| Power Supply | Type | ERP1U | |
| Efficiency | PFC | ||
| Serviceability | Hot-swap | ||
| Input Range | 100-127V AC (Low-Line Voltage) / 200-240V AC (High-Line Voltage) | ||
| Frequency | 60 Hertz | ||
| Output Watts | (2) 1200W @200-240V, max. 12Vdc@ 199.6A / (2) | ||
| GPU Power Connectors | (8) 2x4-pin & (8) 2x3-pin auxiliary 12V power cables included | ||
| Processor | Supported CPU Series | Intel Xeon Processor 5500/ 5600 Series | |
| Socket Type / Q'ty | LGA1366 / (2) | ||
| Thermal Design Power (TDP) wattage | Max up to 130W | ||
| System Bus | Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect (QPI) support | ||
| Chipset | IOH / ICH | Intel (2) 5520 / ICH10R | |
| Super I/O | Winbond W83627 | ||
| PCI-E Switch | PLX PEX8647 | ||
| Memory | Supported DIMM Qty | (9)+(9) DIMM slots | |
| DIMM Type / Speed | DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM | ||
| Capacity | Up to 144GB at launch w/ dual rank RDIMMs | ||
| Memory channel | 3 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (2) PCI-E x16 slots (w/ x4 link) / (8) PCI-E Gen.2 x16 slots / (2) PCI-E Gen.2 x1 slots | |
| Max. HBA Dimension (H x L) | (13) 111.15mm x 312.00mm (FH/FL) | ||
| PCI | (1) PCI 32-bit slot | ||
| LAN | Port Q'ty | (4) | |
| Controller | Intel 82574L | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200 | ||
| Chipset | Aspeed AST2050 | ||
| I/O Ports | USB | (2) ports | |
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (4) ports | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| LED | Fan fail LED indicator / Over temperature warning indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2050 | |
| AST2050 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update | ||
| AST2050 iKVM Feature | 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces | ||
| BIOS | Brand / ROM size | AMI / 4MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring | ||
| Operating System | OS supported list | Please refer to our OS supported list. | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Yes | ||
| Operating Environment | Operating Temp. | 0° C ~ 55° C (32° F~ 131° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
| Package Contains | Barebone | (1) FT72B7015 Barebone | |
| Manual | (1) Quick Ref. Guide / (1) MB User's manual + (1) BB User's manual | ||
| Installation CD | (1) TYAN installation CD | ||
