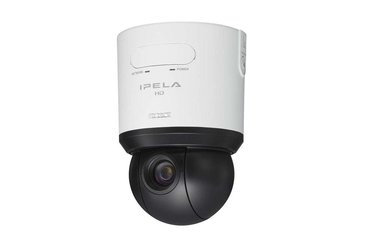

Sony Security System | SNC-RH124
SNC-RH124
| Camera Specifications | Detail: |
|---|---|
| IP/Analog | IP |
| Camera Type | HD Network Rapid Dome Camera |
| Type | Indoor 10x Optical Zoom |
| Image Device | HD CMOS |
| Effective Pixels | Approximately 2 Megapixel |
| Horizontal Resolution | 5.4 to 50 degrees |
| Minimum Illumination | Day - 1.9lx (XDNR, ON, VE ON, Slow Shutter OFF, 50IRE) Night - 0.17lx (XDNR ON, VE ON, Slow Shutter OFF, 50IRE) |
| Lens Type | HD CMOS |
| Focal Length | f=5.1 to 51mm, 10X |
| F-Number | F1.8 (wide), F2.1 (tele) |
| Pan Angle | 360 degrees endless rotation |
| Pan Speed | 400 degrees |
| Tilt Angle | 210 degrees |
| Day Night | YES |
| Wide-D | NO |
| Image Specifications | Detail: |
|---|---|
| Image Size | 1280 x 720, 1024 x 576, 800 x480, 768 x 576, 640 x 480, 384 x 288, 320 x 240, 320 x 180 |
| Compression Format | H.264, MPEG-4, JPEG |
| Frame Rate | H264/MPEG-4: 30 fps (1280 x 720) JPEG: 10 fps (1280 x 720) (Tentative) |
| Analog Video Output Specifications | Detail: |
|---|---|
| Signal System | NTSC / PAL |
| Horizontal Resolution | 480 TV lines |
| S/N Ratio | more than 50dB |
| Interface Specifications | Detail: |
|---|---|
| Interface | 10BASE-T / 100BASE-TX （RJ-45） |
| Serial Interface | RS-232C/RS-422 (PELCO D protocol) |
| External Microphone Input | Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm, 2.5VDC plug-in power |
| Analog Video Output | Mini-jack (Monaural), Max output level： 1 Vrms |
| Audio Line Output | G.711/G.726 |
| General Specifications | Detail: |
|---|---|
| Weight | Indoor Model: 4 lb 10 oz Outdoor Model: 9 lb 15 oz |
| Dimensions (W x H x D) | Indoor Model: 6 1/8 x 9 inches Outdoor Model: 9 3/8 x 13 5/8 inches |
| Finish | White |
| Power Requirements | Indoor Model: AC24V, DC12V, hPoE (future) Outdoor Model: AC24V |
| Power Consumption | 25 W |
| Operating Temperature | Indoor Model: 32°F to 122°F Outdoor Model: -40°F to 122°F |
| Network Specifications | Detail: |
|---|---|
| Protocols | IPv4, IPv6, TCP/IP, ARP, ICMP, HTTP, FTP (client/server) SMTP, DHCP, DNS, NTP, RTP/RTCP, SNMP (MIB-2) |
| Number of Clients | 10 |
| Authentication | IEEE802.1X |
| System Requirements Specifications | Detail: |
|---|---|
| Operating System | Windows XP, Windows Vista |
| Processor | CPU: Core2 Duo 2GHz or higher |
| Memory | 1GB or more |
| Web Browser | Microsoft Internet Explorer Ver6.0, Ver7.0 |
