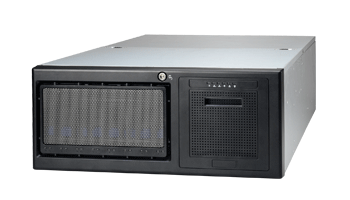

TYAN FT48B7025
TYAN FT48B7025-B7025F48W4H
| System | Form Factor | 4U Rackmount | |
| Chassis Model | FT48 | ||
| Dimension (D x W x H) | 27.5" x 16.8" x 6.9" (700 x 427 x 176mm) | ||
| Motherboard | S7025WAGM2NR-B | ||
| Board Dimension | EEB, 12"x13" (305x330mm) | ||
| Front Panel | Buttons | (1) PWR / (1) RST / (1) ID | |
| LEDs | (1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning | ||
| I/O Ports | (2) USB ports | ||
| External Drive Bay | Type / Q'ty | 3.5" Hot-Swap / (4) / (3) 5.25" device bays | |
| Supported HDD Interface | SAS 3.0Gb/s / SATA-II 3.0Gb/s | ||
| System Cooling Configuration | FAN | (3) 12cm fans | |
| Power Supply | Type | ERP1U | |
| Efficiency | PFC / 80-plus | ||
| Redundancy | (2+0), the redundant unit is not included in default configuration | ||
| Input Range | Full-range AC(100-240V) | ||
| Frequency | 47 - 63 Hertz | ||
| Output Watts | 1,300W (2 x 650W) | ||
| GPU Power Connectors | (2) Y-shaped, 2x4-pin auxiliary 12V power cables included (for up to (4) GPUs installation) | ||
| Processor | Supported CPU Series | Intel Xeon Processor 5500/ 5600 Series | |
| Socket Type / Q'ty | LGA1366 / (2) | ||
| Thermal Design Power (TDP) wattage | Max up to 95W | ||
| System Bus | Up to 4.8/ 5.86/ 6.4GT/s with Intel QuickPath Interconnect (QPI) support | ||
| Chipset | IOH / ICH | Intel (2) 5520 / ICH10R | |
| Super I/O | Winbond W83627DHG | ||
| Memory | Supported DIMM Qty | (4)+(4) DIMM slots | |
| DIMM Type / Speed | DDR3/DDR3L 800/1066/1333* RDIMM/UDIMM | ||
| Capacity | Up to 64GB RDIMM/ 32GB UDIMM | ||
| Memory channel | 3 Channels per CPU | ||
| Memory voltage | 1.5V or 1.35V | ||
| Expansion Slots | PCI-E | (4) PCI-E Gen.2 x16 slots / (1) PCI-E Gen.2 x8 slot (w/ x4 link) / (1) PCI-E Gen.2 x4 slot | |
| PCI | (1) PCI 32-bit slot | ||
| LAN | Port Q'ty | (2) | |
| Controller | Intel 82574L | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | 1600x1200@60Hz | ||
| Chipset | Aspeed AST2050 | ||
| Audio | Chipset | Realtek ALC262 | |
| Feature | HDA 2.0 spec. complaint | ||
| TPM | Chipset | Infineon SLB9635 | |
| Version | TPM v1.2 | ||
| I/O Ports | USB | (7) USB2.0 ports (4 at rear, 2 at front, 1 type A onboard) | |
| COM | (1) DB-9 COM port | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) ports | ||
| System Monitoring | Chipset | Winbond W83793G | |
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| Temperature | Monitors temperature for CPU & system environment | ||
| LED | Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2050 | |
| AST2050 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / BIOS update | ||
| AST2050 iKVM Feature | 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces | ||
| BIOS | Brand / ROM size | AMI / 4MB | |
| Feature | Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types | ||
| Operating System | OS supported list | Please refer to our OS supported list. | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Yes | ||
| C-Tick | Yes | ||
| VCCI | Yes | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Complaint | Yes | |
